Rackmount Termination Panels

BNCPANEL LEMOPANEL SMAPANEL LEMO3PANEL PTBPANEL BNCPANEL-16

  • 2U, 19" rackmount steel panel
  • 32 isolated BNC connectors
  • Differential wiring to S68 connector on rear side, to cable back to ACQ196CPCI
  • Also available to connect to ACQ132CPCI
  • 100V Zener diode transient protection.

BNCPANEL BNCPANEL Rear Side - full BNCPANEL Rear Side - connector detail
LEMOPANEL-32

  • 1U, 19" rackmount steel panel
  • 32 dual pin LEMO connectors. differential connection.
  • Dual cable connection at rear to connect to ACQ132CPCI
  • Single cable connection at rear to connect to ACQ196CPCI
  • 100V Zener diode transient protection.

Picture shows a standard 4U Portable cabinet with 4 x LEMOPANEL-32 4U Portable Cabinet with 4 x LEMOPANEL-32
LEMO3PANEL-32

  • 1U, 19" rackmount steel panel
  • 32 tri-pin LEMO connectors. differential connection.
  • Single cable connection at rear to connect to ACQ196CPCI
  • 100V Zener diode transient protection.

Picture shows 4 x LEMO3PANEL-32 in a 19" cabinet <img class="REMpg-text-img" src="images/LEMO3PANEL-32.jpg" alt="4 x LEMO3PANEL-32 in a 19" cabinet" width="200" />

SMAPANEL-32

  • 1U, 19" rackmount steel panel
  • 32 floating SMA connectors. differential connection.
  • Dual cable connection at rear to connect to ACQ132CPCI
  • Single cable connection at rear to connect to ACQ196CPCI
  • 100V Zener diode transient protection.

Image of DJ4 case

PTBPANEL

  • 1U, 19" rackmount steel panel
  • 32 Plugin Terminal Block PTB sockets. differential connection.
  • Single cable connection at rear to connect to ACQ196CPCI
  • Dual cable connection at rear to connect to ACQ132CPCI
  • 100V Zener diode transient protection.

Picture shows part of ptbpanel, inset shows PTB connector in place. Part of ptbpanel. Inset: PTB connector in place

BNCPANEL-16 (BNCPANEL-8)

  • 1U, 19" rackmount steel panel.
  • 16 (8) isolated BNC connectors.
  • Rear cable connection for 1 x ACQ425ELF-16 or (2 x ACQ420FMC-4).
  • Transient overvoltage suppression.
  • Front panel LEMO-00 connectors for CLK and TRG.

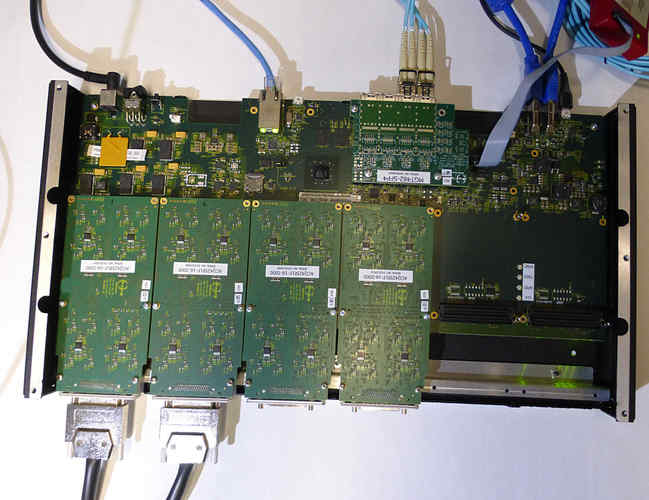

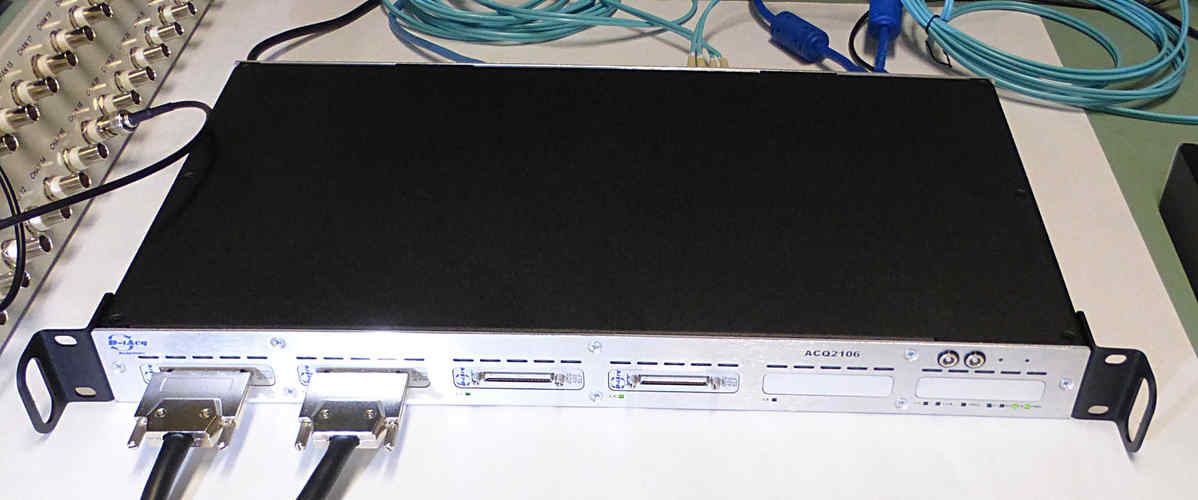

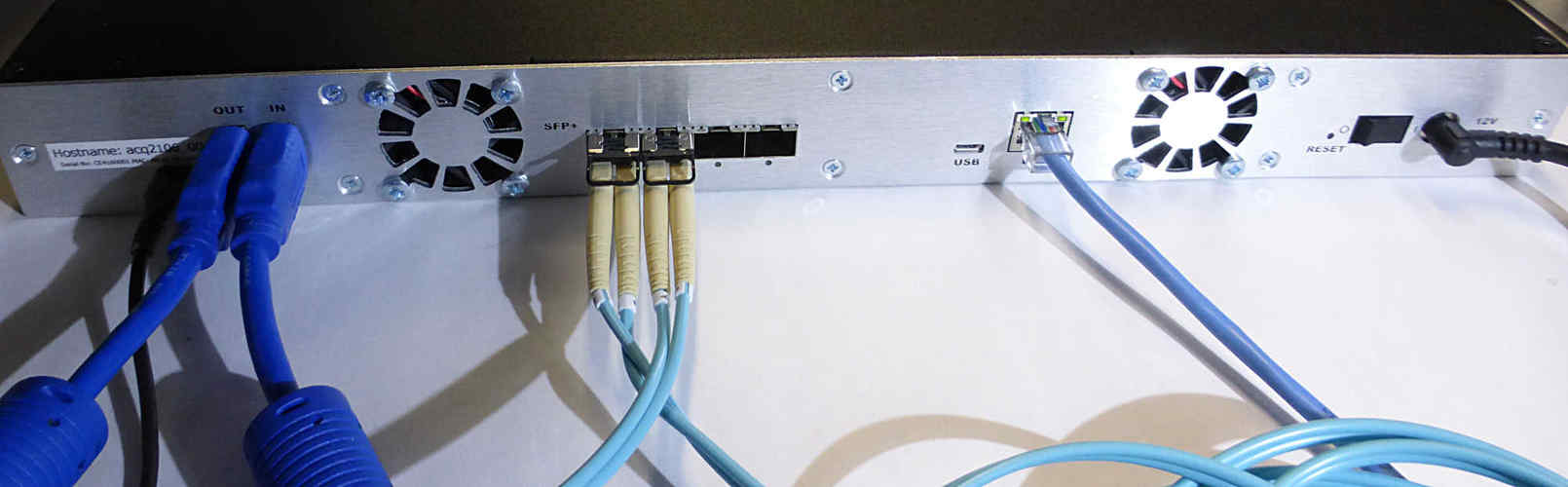

BNCPANEL-16 - use with ACQ424ELF-16 BNCPANEL-8 - use with 2 x ACQ420FMC-4 Installation Guide
Further Termination Examples ...
