DIN-Rail Termination Modules

A range of small-size, low cost signal breakout modules, with convenient DIN-RAIL mount.

TERM-01

• Connects ACQ420FMC to 4 Pluggable Terminal Block PTB inputs

TERM-02

• connects AO421 to 2 x AACQ435

TERM-03

• connects ACQ430FMC, 8 channels to 8 floating BNC or PTB

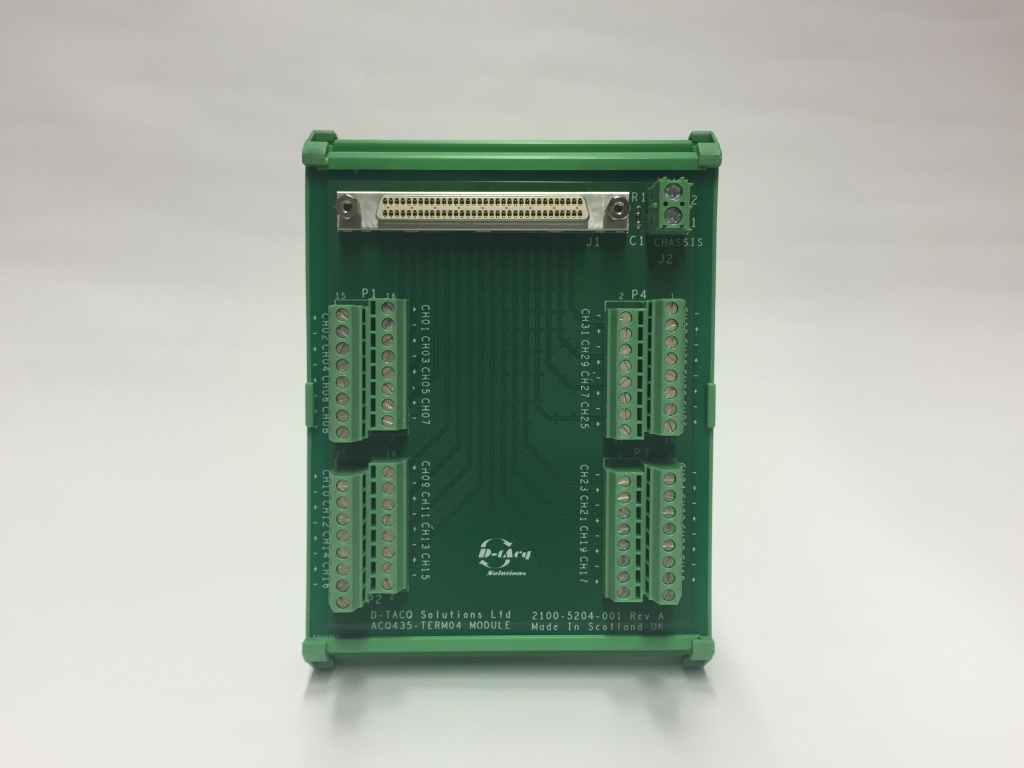

TERM-04

• 32 screwterminal block.
• Rear cable connection HPD68, compatible with all D-TACQ VHDCI inputs (ACQ423, ACQ424, ACQ425, ACQ435, AO424)
• TERM04 Installation Guide

TERM-05

• SYNC highway breakout 2xHDMI to 8 x BNC.

TERM-6, TERM-07, TERM-08, TERM-09

• Various production test breakouts. Ask if you have a particular cabling requirement, we may have an off-the-shelf solution

TERM-10

• Opto-isolated digital inputs (TRG, CLK, SYNC, AUX)
• TERM10 Installation Guide

TERM-11

• Fiber optic digital inputs (TRG, CLK, SYNC, AUX)
• TERM11 Installation Guide
