MGT508 14GB DRAM expansion

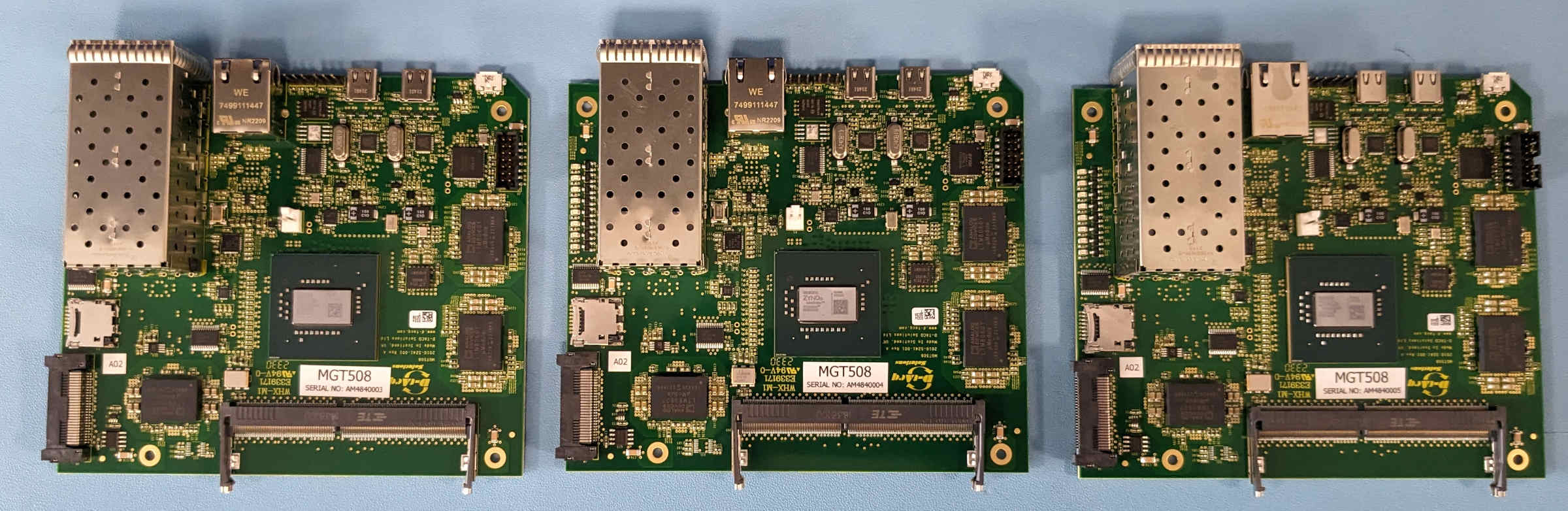

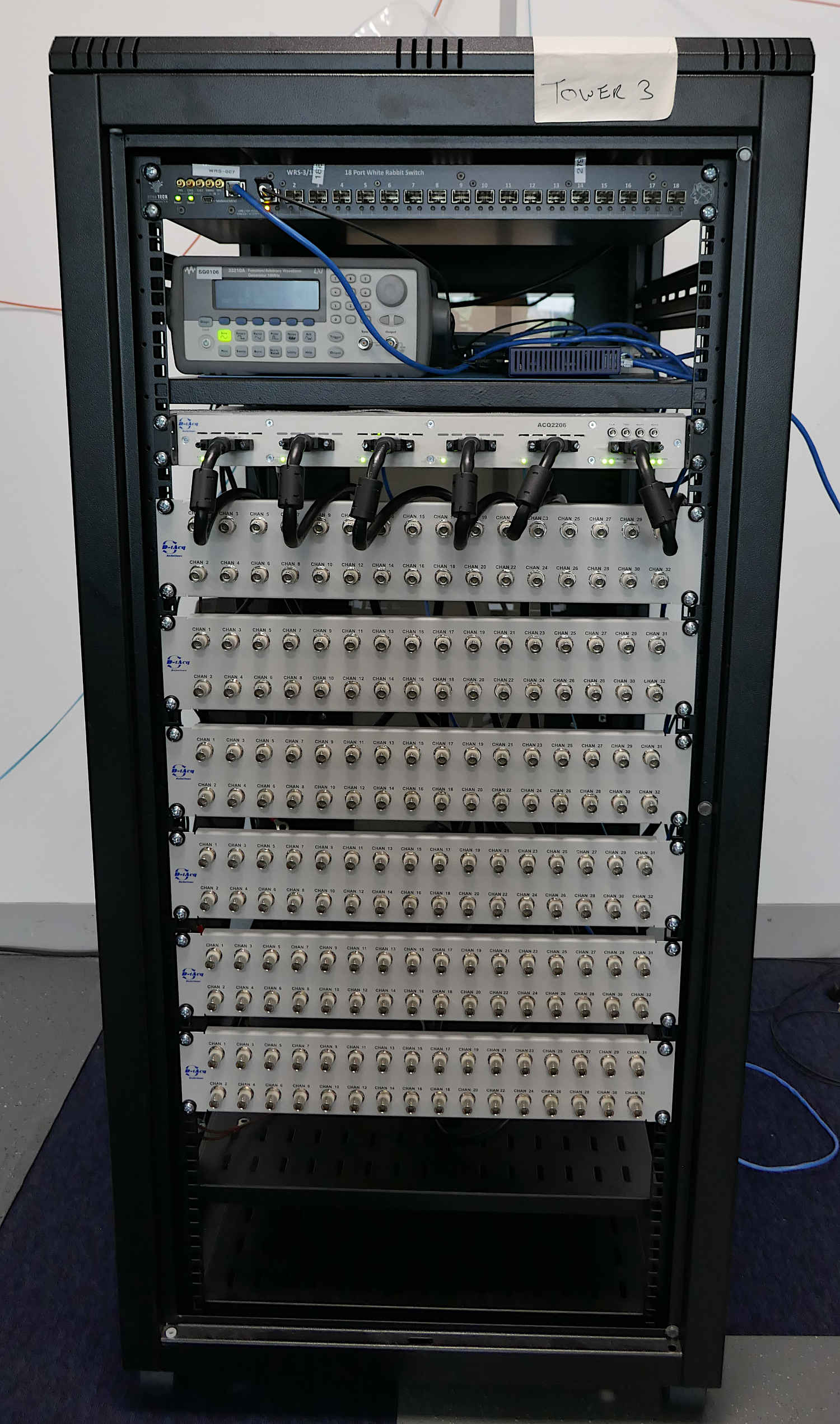

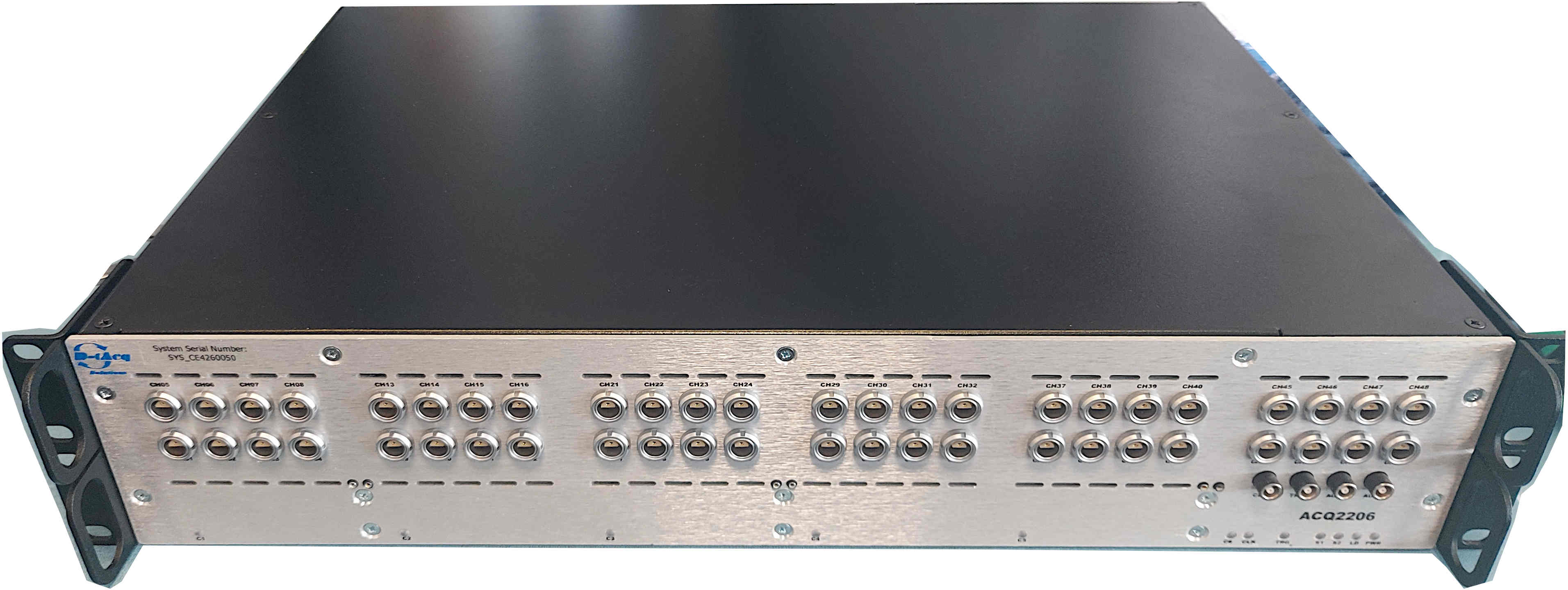

MGT508 is a comms mezzanine to upgrade ACQ2206 providing 14GB DRAM dedicated to fast data capture.

• MGT508 is a 16GB DRAM extension module for ACQ2206

  • provides continuous capture to 14GB of DRAM at up to 2GB/s
  • offload the capture on Gigabit Ethernet TCP/IP at near line-rate:

      1. A well-configured network will achieve full line rate: 112MB/s (14GB in 130s)
      2. Typical unoptimised sustained offload rate: 80MB/s (14GB in 175s).


  • extremely simple control and data interface.
  • alternative to MGT483 10Gbps quad SFP streaming unit, supports higher rates, and does not require real time network performance in-shot.

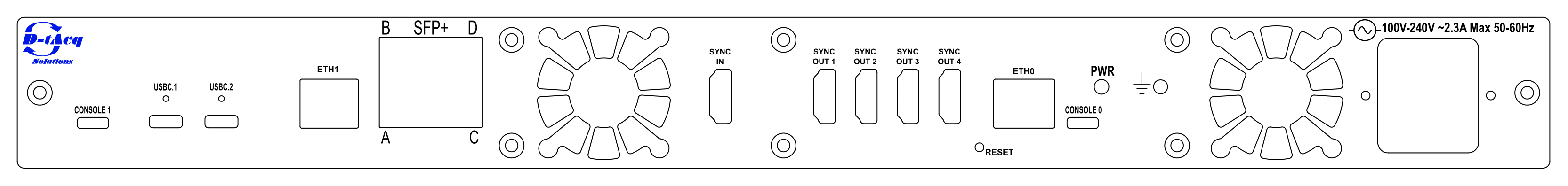

  • Unit includes Quad SFP port for high speed comms, and proposed faster data offload.
  • Unit includes ZYNQMPSOC ZCU4 with significant PL (FPGA logic) and PS (2xA53 cpu, 2GB DRAM) DSP capability for possible custom real-time processing.

• Example Use-Cases:

  • 1xACQ482ELF, 16ch x 2b x 40MSPS = 1280MB/s, 10s shot fills 12.8GB, offload in 120s.
  • 2xACQ482ELF, 32ch x 2b x 25MSPS = 1600MB/s, 8s shot fills 12.8GB, offload in 120s.
  • 3xACQ482ELF, 48ch x 2b x 10MSPS = 960MB/s, 12s shot fills 11.5GB, offload in 105s.

• MGT508 completely replaces the obsolete MGTDRAM

  • faster input data rate, deeper memory, faster offload.
  • MGTDRAM users are encouraged to contact D-TACQ about upgrade possibilities.

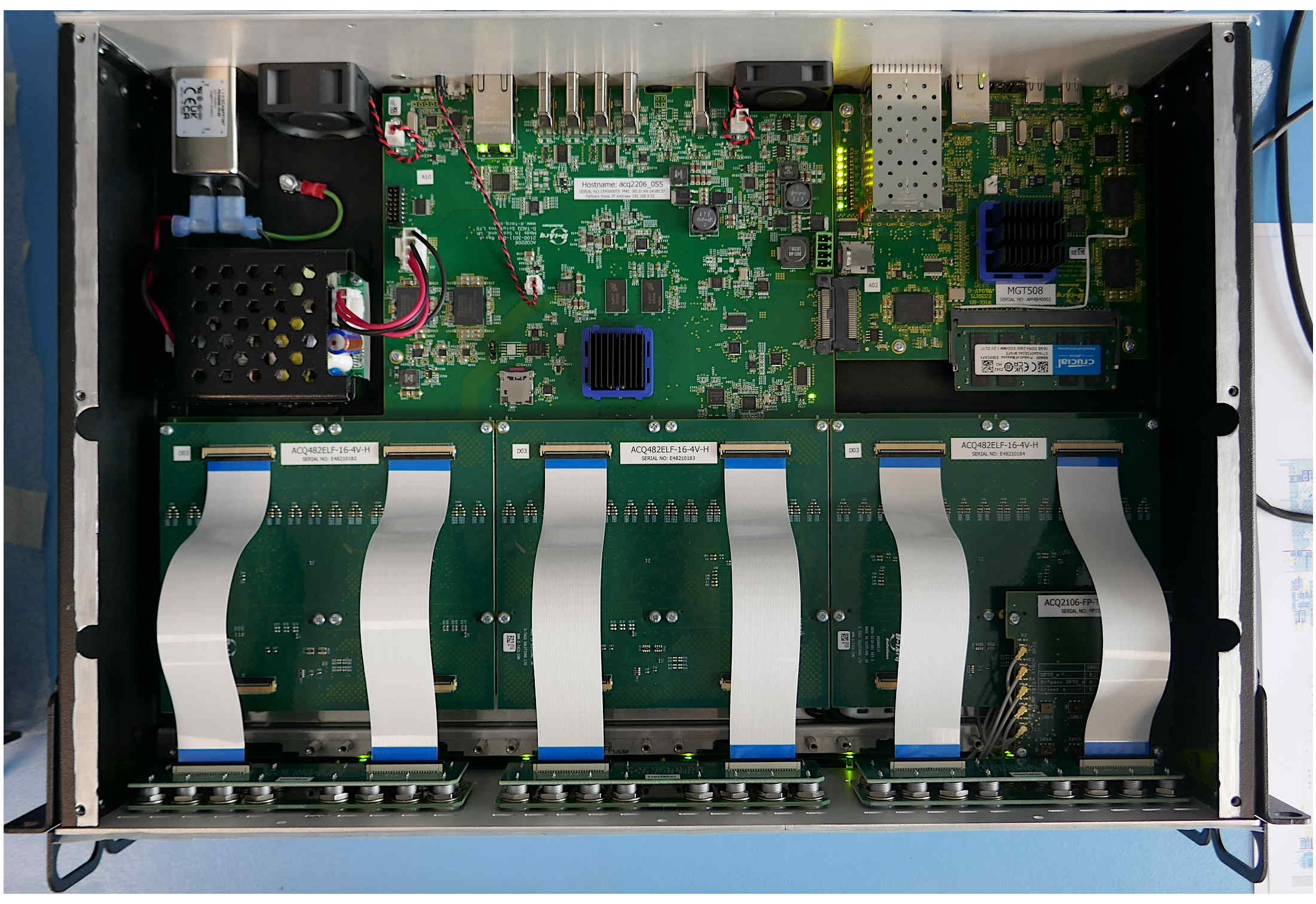

• MGT508 is installed in place of MGT483

• choose MGT508 when:
  • in one-shot mode when the onboard DRAM (512MB) is too short to hold the shot, and it's not possible to rely on the network to offload the data in real-time.
  • for systems with additional FPGA DSP beyond the capability of the motherboard ZYNQ7030.
  • for possible high performance embedded real-time feedback systems

• choose MGT483 when

  • in one-shot mode, the data fits onboard DRAM (512MB).
  • it's feasible to stream the data on UDPX (10G Ethernet UDP), ~400MB/s.
  • it's feasible to stream the data on HUDP (1G Ethernet UDP), ~100MB/s.

  • it's feasible to stream the data on TCP/IP (1G Ethernet), ~40MB/s.

  • Full shot cycle control using Python: Example usage mgt508_README.md
